Offset Discs

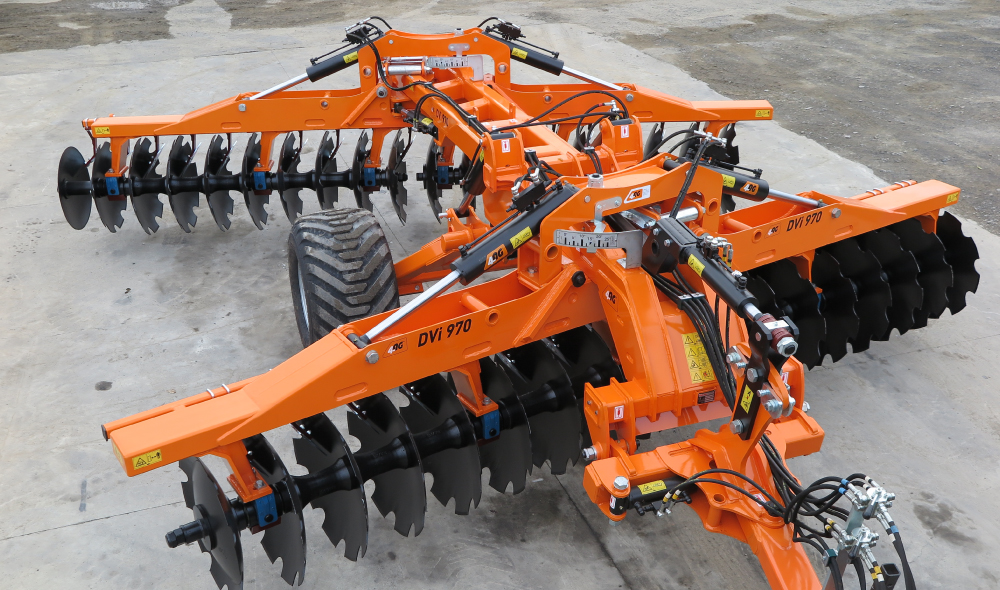

DVi 970

HD Folding offset discs with 4.1-5.1m working width

These heavy offset discs are used for the most demanding operations. Maximum penetration, total control. Primary discs that can also finish.
Flat, rolling, pasture, crop, land development, the list goes on. The DVi970 is simply the most versatile piece of cultivation gear you will own. Fully optioned with simple, quick adjusting of all functions from the tractor.

Versatile Cultivation

Models from 4.1m to 5.1m, for 190-350Hp
Full hydraulic operation of all adjustments including independent tuning of each gang
Vertical fold design keeps overall length shorter, giving greater contour following ability

Constructed with selected European high-grade steel, for strength and resistance to torsional stress
Oversized wheels on wide wheelbase, for stable, fast transport speed

Specifications

Model	DVi 970/36	DVi 970/40	DVi 970/44
Working width	4.1 m	4.6 m	5.1 m
Transport width	2.6 m	2.6 m	2.6 m
Blade size	660 mm / 26"	660 mm / 26"	660 mm / 26"
Blade spacing	230 mm / 9"	230 mm / 9"	230 mm / 9"
Weight	4300 kg	4650 kg	4950 kg
Hydraulic cut adjust	Yes (Front/Rear Independent)	Yes (Front/Rear Independent)	Yes (Front/Rear Independent)

Innovation

Something has to give

TerraFlex® is our unique, patented pivot bearing system that extends the working life of the tapered roller bearings by minimising the impact and damage from foreign objects.

More Info

MASSIVE
VERTICAL
ARTICULATION

TerrainPilot® technology keeps both disc gangs firmly on the ground where they should be in sharp, unpredictable terrain. Minimised point loading on the drawbar components.

More Info
