Deep Ripper

TO Terraland

Deep ripper with 4m working with

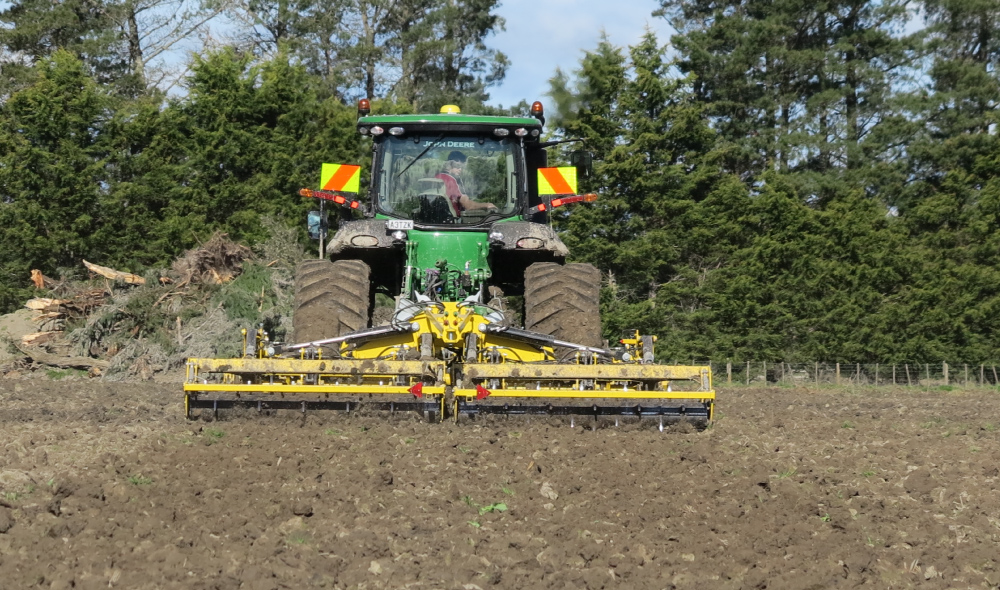

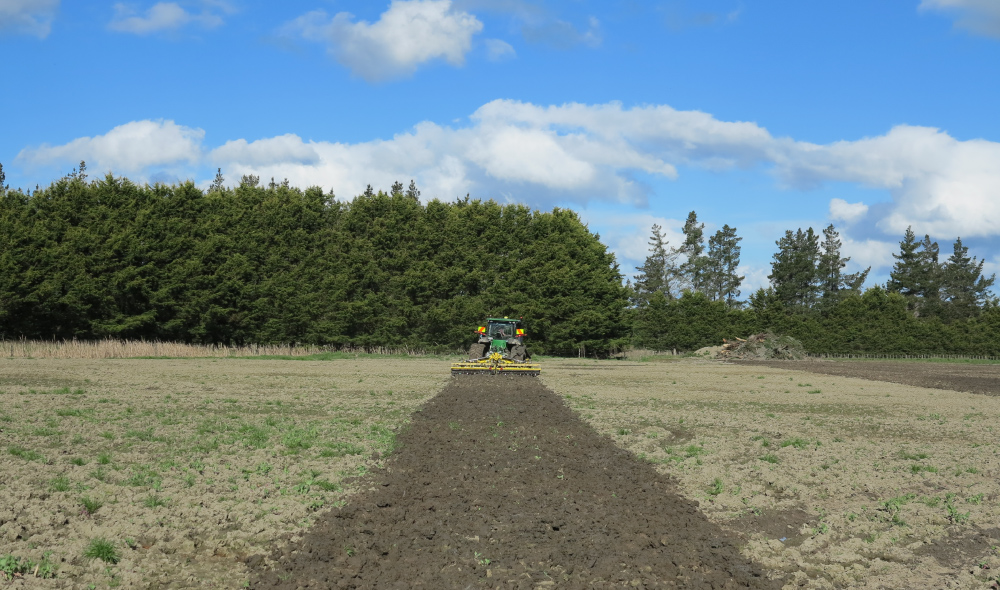

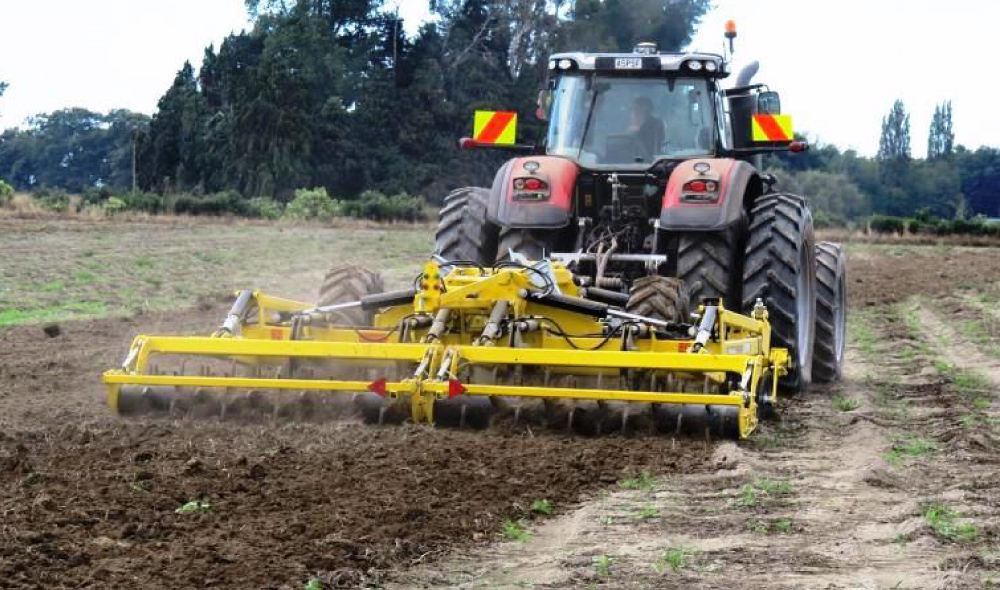

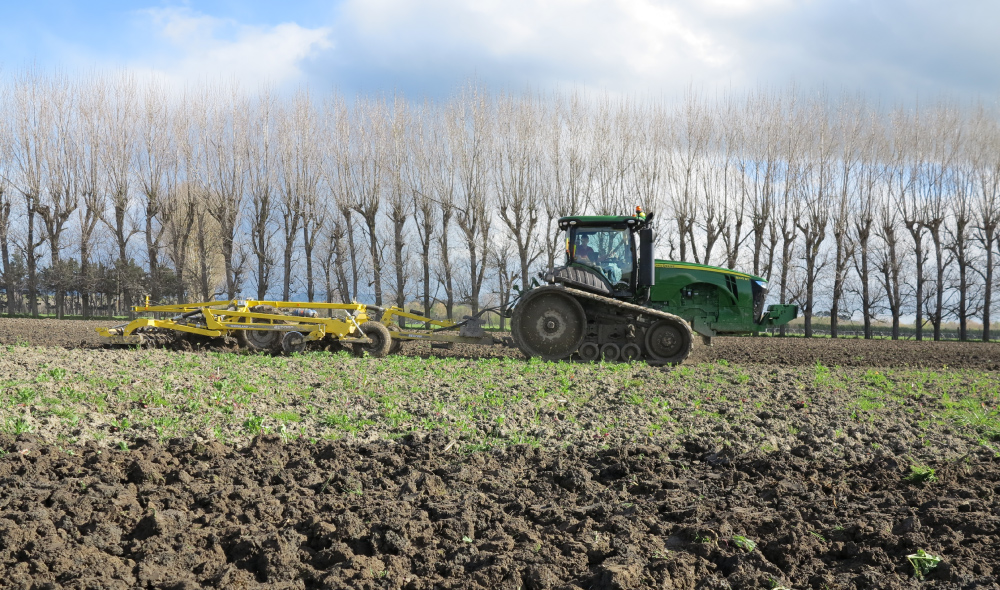

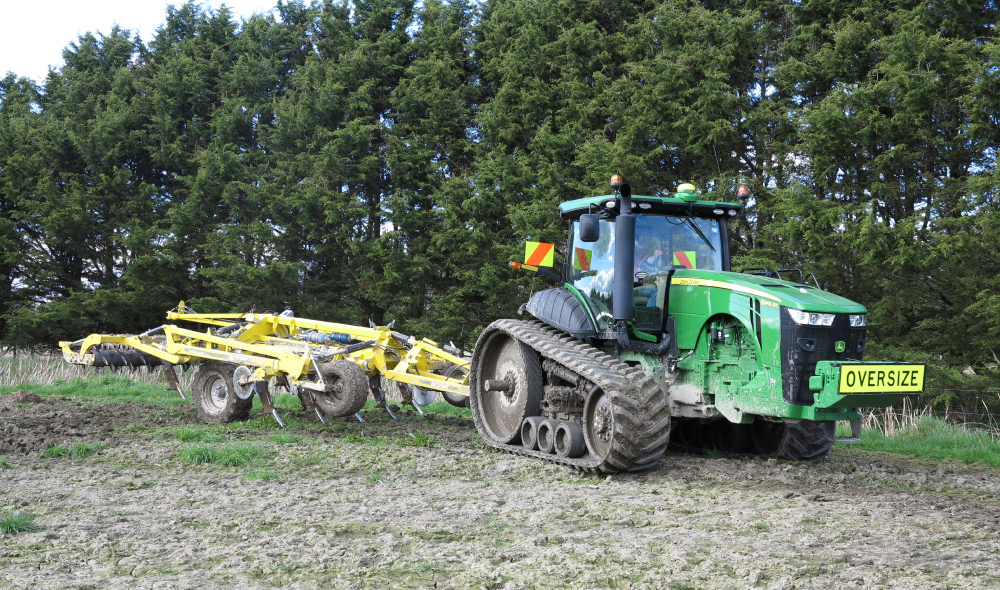

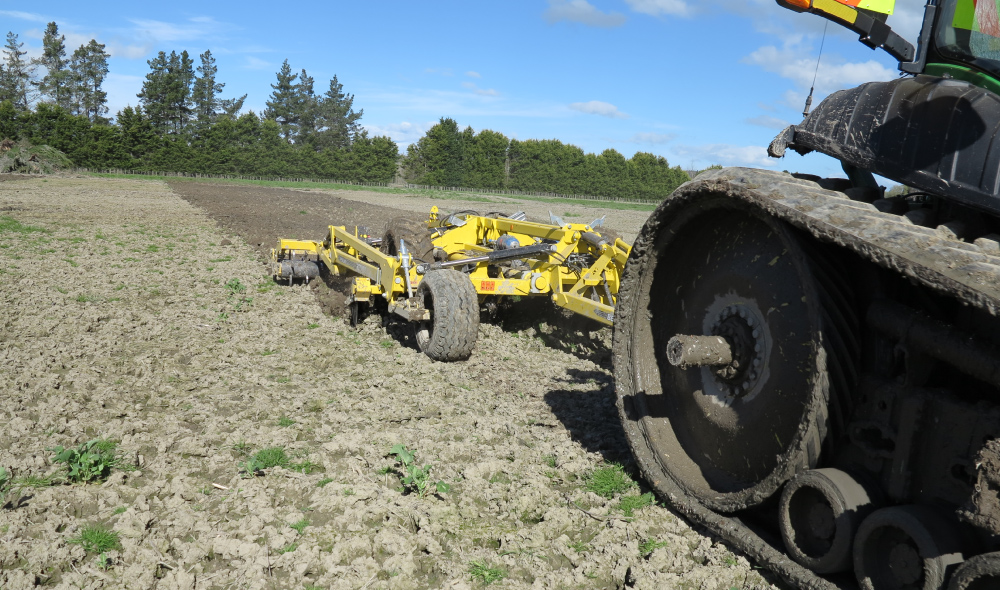

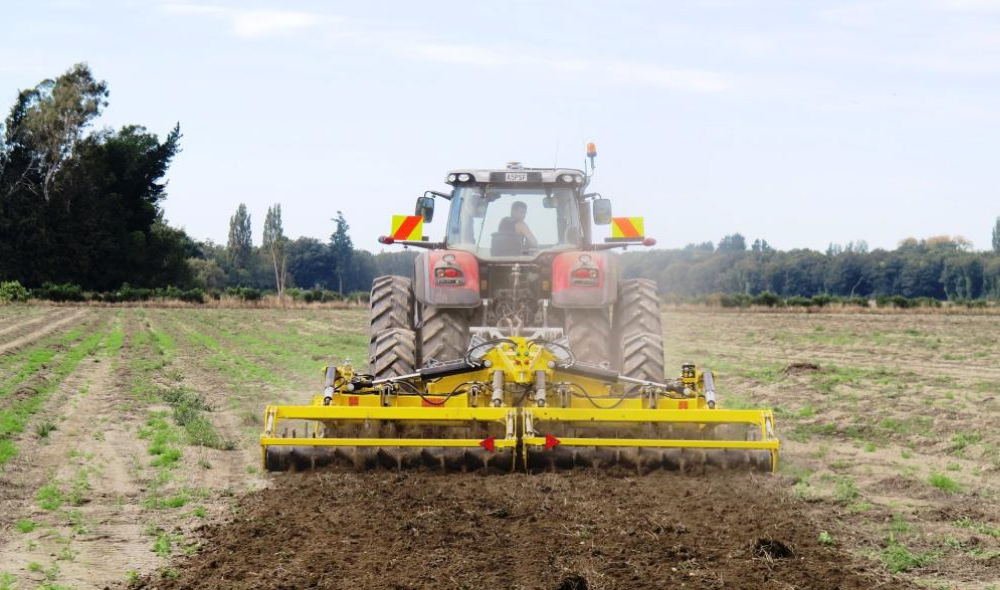

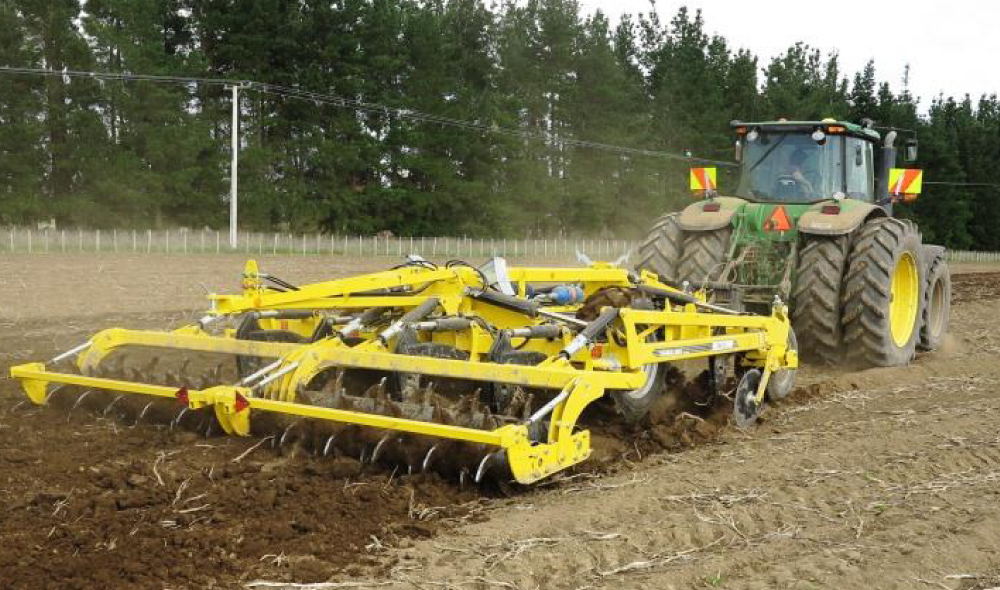

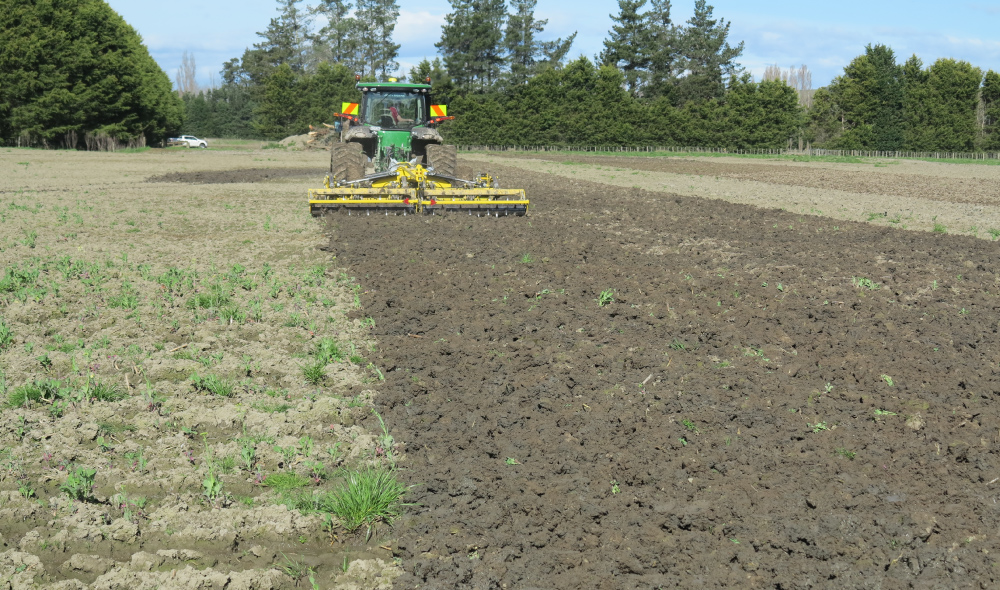

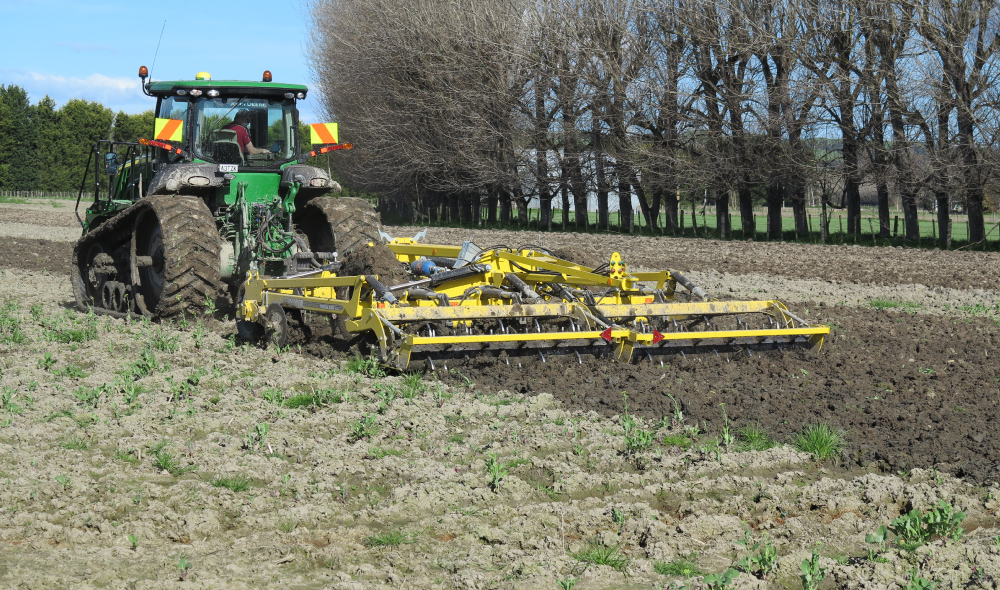

The Terraland TO is the ultimate in trailed chisel plough, giving intensive working down to 55cm.

The Terraland TO is the ultimate in trailed chisel plough, giving intensive working down to 55cm.

Intensive Working

  • High frame clearance and central mounted wheels, means the Terraland keeps working when conditions are far from ideal. Wet autumn or early spring conditions present no problem

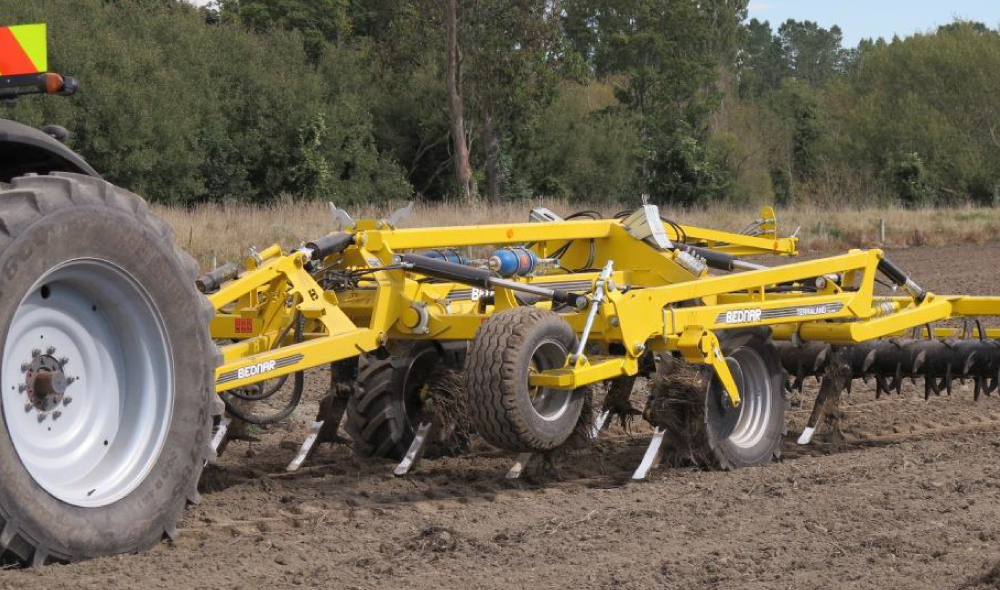

  • Hydraulic non-stop leg protection giving 1000- 1500kg trip pressure, combined with massive frame construction (150x150x13mm) ensure years of reliable work with high horsepower tractors

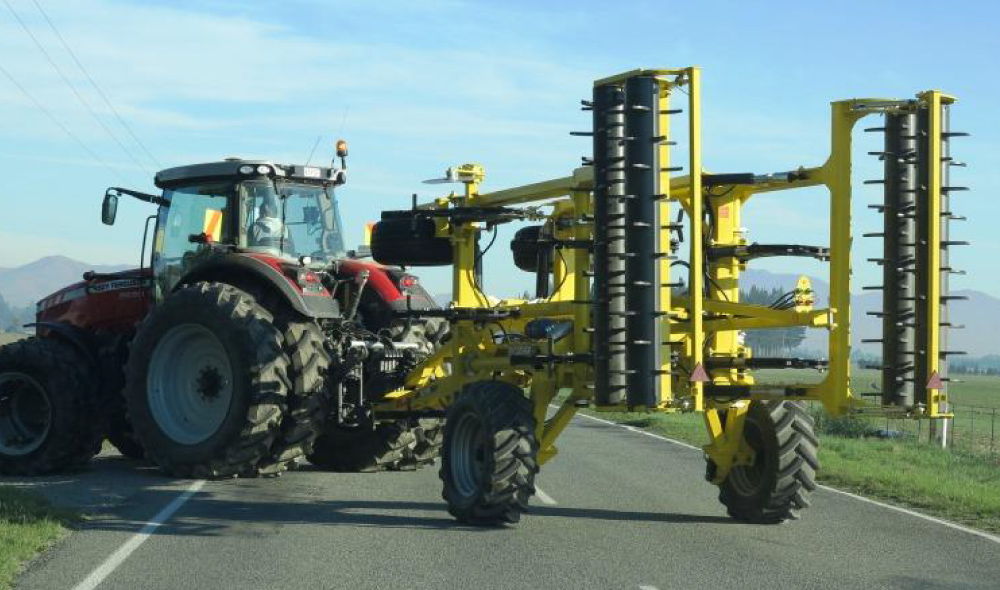

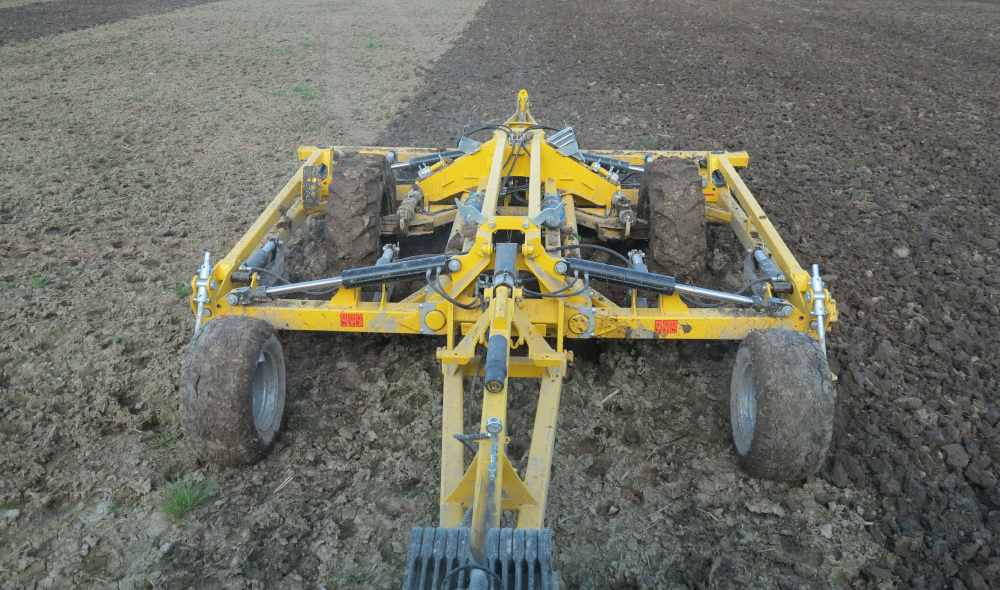

  • Central mounted transport axle gives tighter headland turning, plus increased stability and safety during road transport
  • Optional rear drawbar for pulling trailed presspack or cutterpack, for added consolidation or crumbling of soil. In some conditions this enables sowing of crop after one pass

Specifications

ModelTO 4000TO 5000TO 6000
Working width4.0m
5.0m6.0m
Transport width3.0m
3.0m3.0m
Working Depth15–55cm
15–55cm15–55cm
Weight7500kg
8500kg9500kg
